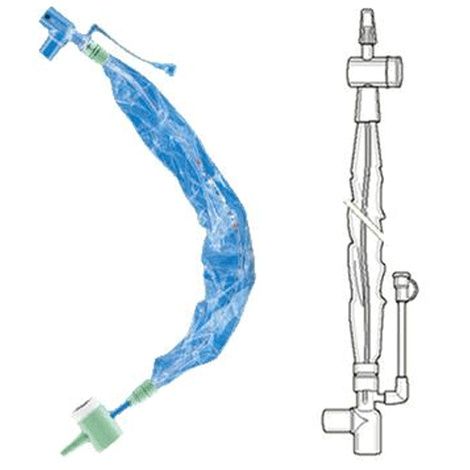

Kimberly-Clark KimVent Neonatal And Pediatric Elbow Closed Suction System

KimVent Neonates And Pediatric System Features

• Tactile sleeve for catheter advancement
• Soft low durometer catheter to minimize tracheal trauma
• Lavage/irrigation port
• Locking thumb port
• Elbow adapter for standard and high-frequency ventilation
• Number and color coded graduations for measured depth suctioning, helping to prevent unnecessary tracheal trauma

How to setup Neonatal And Pediatric Elbow Suction System?

1. Select appropriate size Neonatal / Pediatric Y (same size as the endotracheal tube).
2. Attach HALYARD catheter to Y.
3. Attach thumb control valve to suction tubing.
4. Hold thumb control valve depressed and simultaneously adjust the vacuum regulator to the desired level; release the thumb control valve.
5. Remove the original ET adapter, and attach Y to endotracheal tube and ventilator circuit.
