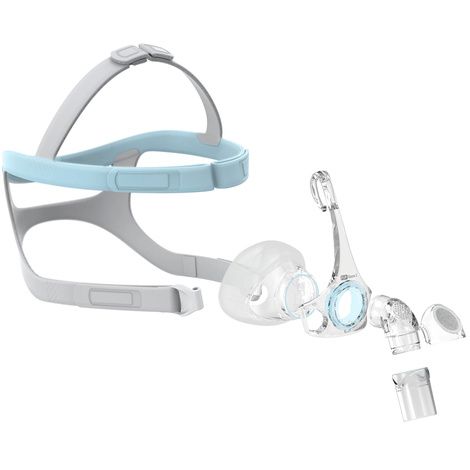

Fisher & Paykel Eson 2 Nasal Mask With Headgear

More Information

• Operating instructions:
  - The operating pressure range of your mask is 4 to 30 cmH2 O.
  - The operating temperature range of your mask is 5 to 40°C (41 to 104 °F). Before using your mask each time, you should:
  - Inspect it for damage or deterioration. If there is any visible deterioration (cracking, tears, etc.), do not use your mask, and seek replacement part(s) from your healthcare provider.
  - Inspect the exhaust holes on the Elbow. Ensure air is flowing through these holes and do not use if blocked.
  - Make sure path of air in mask is free from objects that may prevent breathing
• Fitting Your Mask:
  - Remove all packaging before using your mask.
  - Hold open the bottom straps of the Headgear with the Mask Frame facing downwards.
  - Guide the headgear over your head so that the silicone seal is resting on your forehead.
  - Place your hands on the bottom straps on either side of the mask frame and pull out and downwards.
  - Ensure the silicone seal rests over your nose and the blue top strap is sitting on your forehead.
  - Gently tighten the headgear straps of the mask headgear starting with the blue forehead straps followed by the bottom straps.
  - The forehead straps should rest horizontally on the forehead, just above the ears. If required the crown strap can be adjusted to achieve this
• Useful fitting tips:
  - If you are experiencing mask leaks, you may need to lift the Silicone Seal off your face and reposition it again.
  - Ensure the masks headgear straps are not fastened too tightly.
  - The forehead straps should rest horizontally on the forehead, just above the ears.
• Disassembly For Cleaning:
  - Unhook the Headgear Clips from the Mask Frame
  - Slide the forehead straps of the Headgear downwards from the top of the Mask Frame
  - Remove the Silicone Seal from the Mask Frame.
  - Remove the Swivel from the Elbow
  - Remove the Diffuser from the Elbow
• Cleaning Your Mask At Home:
  - Wash your mask (excluding the Headgear and Diffuser ) after each use:
  - Hand-wash your mask in soap dissolved in lukewarm water. Do not soak for more than 10 minutes.
  - Rinse thoroughly with fresh water, ensuring that all soap residue has been removed.
  - Leave all parts to dry out of direct sunlight before reassembling.
• Wash your Headgear (not included) and Diffuser after 7 days of use:
  - Hand-wash your Headgear in soap dissolved in lukewarm water. Do not soak your Headgear for more than 10 minutes.
  - Gently hand-wash the Diffuser in soap dissolved in lukewarm water, avoid scrubbing the material. Do not soak your Diffuser for more than 10 minutes.
  - Rinse thoroughly with fresh water, ensuring that all soap residue has been removed.
  - Leave all parts to dry out of direct sunlight before reassembling.
• Cleaning Cautions:
  - Do not clean your mask with products containing alcohol, anti-bacterial agents, antiseptic, bleach, chlorine or moisturizer.
  - Do not clean your mask in a dishwasher.
  - Do not store your mask in direct sunlight.
  - The above actions may deteriorate or damage the mask and shorten its life. If there is any visible deterioration do not use your mask, but seek replacement part(s).
• Warnings:
  - Your mask should only be used with approved CPAP or Bi-Level equipment recommended by your physician or respiratory therapist.
  - Your mask should not be used unless the CPAP or Bi-Level machine is turned on and operating properly. The exhaust holes associated with the mask should never be blocked.
  - CPAP and Bi-Level machines are intended to be used with special masks, which have exhaust holes to allow continuous flow of air out of the mask.
  - Device switched on (with mask connected): When the CPAP or Bi-Level machine is turned on and functioning properly, new air from the CPAP or Bi-Level machine flushes the exhaled air out through the masks exhaust holes.
  - Device switched off (with mask connected): When the CPAP or Bi-Level machine is turned off, not enough fresh air will be provided through the mask, and exhaled air may be re-breathed. Re-breathing of exhaled air for longer than several minutes can lead to suffocation in some circumstances.
  - At low CPAP or Bi-Level pressures, the flow through the exhaust holes may be inadequate to clear all exhaled gas from the tubing. Some re-breathing of exhaled air may occur.
  Discontinue use and consult your healthcare provider or physician if the following occurs:
  - Mask discomfort or irritation
  - Allergic reaction
  - Do not use if vomiting or feeling nauseous.
  Use with oxygen: With your CPAP or Bi-Level machine, the oxygen flow must be turned off when the machine is not operating. Oxygen accumulated in your CPAP or Bi-Level machine enclosure will create a risk of fire. You should not smoke or be in the vicinity of someone smoking while using oxygen with your mask.
  - Only use F&P Eson 2 Diffuser spare parts.
  - Ensure the diffuser is completely dry before each use.
