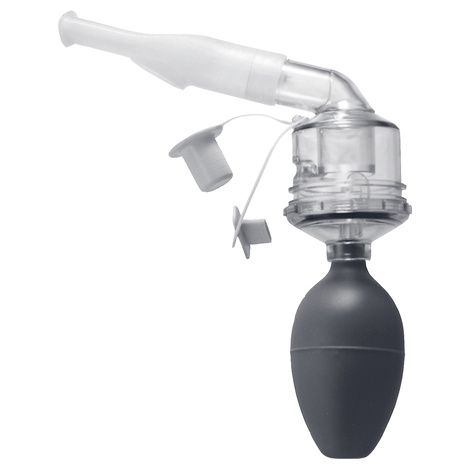

Drive Model 45 Hand Held Spray Nebulizer

More Information

• How To Use
  - Remove stopper from vapor tube holding nebulizer in horizontal position, add medication through vapor tube. DO NOT FILL ABOVE O-RING. OVERFILLING WILL CAUSE NEBULIZER TO LEAK
  - Remove stopper to attain maximum aerosol delivery. Hold nebulizer in upright position
  - With mouth fully open, place end of vapor tube just inside lips. Compress bulb firmly and sharply, using the fingers against the palm of the hand. Inhale deeply with each bulb compression
  - When using with mouthpiece, affix mouthpiece on vapor tube. Mouthpiece is to be placed between teeth with lips open
  NOTE: The Model 45 nebulizer includes a mouthpiece specifically designed for use with this model. It is not compatible with other sizes of mouthpieces
  - After using, replace stoppers
• How To Clean
  For best performance and service life, clean your nebulizer daily
  - Remove stoppers from nebulizer ports. Separate nebulizer base and vapor tube by unscrewing. Remove medication
  - With thumb and index fingers, using a lifting motion, carefully remove jet
  - Nebulizer plastic parts and mouthpiece should be rinsed with hot tap water after every use by removing bulb from nebulizer base, and cleaned at least once a day. Your physician or dealer may specify a certain cleaning procedure. If so, follow their recommendations
  - Using two clean plastic containers or bowls, fill one with hot water and dishwashing detergent for washing, the other with hot water and vinegar solution (one part vinegar to three parts water) for soaking
  - Place nebulizer plastic parts and mouthpiece in bowl of detergent solution and clean thoroughly
  - Remove and rinse with clear hot tap water, then soak in vinegar solution (>=5% acetic acid concentration) for 30 minutes
  - Rinse with hot tap water and air dry
  - Nebulizer plastic parts EXCLUDING mouthpiece, o-ring, and bulb may also be sterilized by boiling
  - Keep the outer surface of the bulb dust-free by wiping with a clean, damp cloth
  Caution : Never permit water or medication to enter bulb as it will cause bulb to become prematurely brittle
  - After parts are thoroughly dried, reassemble bulb to nebulizer base. Carefully replace jet to original position in base with closed part of jet toward throat
  - Reassemble top portion of nebulizer to nebulizer base

Warranty

6 month limited warranty
