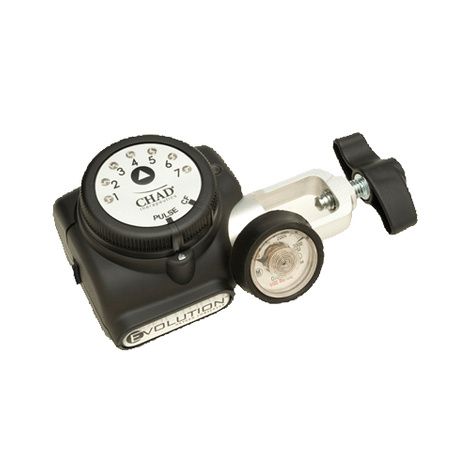

Drive Chad Evolution Electronic Oxygen Conserver
Buy Drive Chad Evolution Electronic Oxygen Conserver

Drive Chad Evolution Electronic Oxygen Conserver

Brand/Manufacturer: DRIVE MEDICAL
Hpfy Stores Save
Authorized Retailer Badge
  • FSA Approved

Drive Chad Evolution Electronic Oxygen Conserver is designed for use as part of a portable ambulatory oxygen system for the purpose of facilitating long-term oxygen therapy (LTOT). This conserver provides mobile LTOT patients with an extended operating time of their mobile system. It includes a combination of a low-pressure regulator and an oxygen conserver and is capable of delivering a precise amount of supplemental oxygen at the optimal point in the breathing cycle. Benefits mouth breathers and patients who cannot take deep breaths by triggering more easily.



Read More
Item # Desc Pkg Price
OM-900 6.1"L x 2.5"H x 3.1"W (15.5 cm x 6.4cm x 7.9cm) Each
$360.82
$288.65

Features

  • Drive Chad Evolution Electronic Oxygen Conserver is very lightweight, weighing only 14.9 ounces with batteries
  • Senses a breath or delivers oxygen in the first half of the inspiratory cycle
  • Delivers a 5:1 savings ratio from 14 to 40 breaths per minute
  • Minimum 2 year battery life utilizing 2 AA batteries (average 4 hours per day usage)
  • Increases efficiency in the delivery of oxygen, maximizing the beneficial effects and eliminating unnecessary oxygen waste
  • Delivers a uniform oxygen pulse at increments: 1, 2, 3, 4, 5, 6, 7 Plus CF preset at 2 LPM
  • Single push button selects the equivalent LPM dosage settings
  • Operating pressure range: 200PSI to 3000PSI
  • Auto shut-off feature conserves battery life
  • Fits easily in virtually any carry bag
  • Click Here For Instructions Manual
  • Note:
    - This product requires a prescription from a licensed medical professional.
    - Prescription can be faxed to 1.203.616.2851 or emailed to prescription@hpfy.com.

More Information

  • Caution:
    - The Evolution is not suitable for use during sleep.
    - The Evolution is not suitable for children.
  • Function: When we breathe, approximately one-third of the time is spent inhaling, and two-thirds exhaling. As a result, oxygen delivered by continuous flow is wasted during exhalation. By eliminating oxygen flow during exhalation, a two-thirds savings is possible. Additionally, the application of the Evolution is based on the fact that only oxygen inhaled at the beginning of the breath actually reaches the alveoli and is absorbed by the body. The oxygen inhaled during the remainder of the breath is not used and is exhaled again. For this reason, the Evolution only administers oxygen at the beginning of inhalation. This makes the oxygen source last longer. The Evolution is designed to be an integral component of a lightweight, long-lasting ambulatory system.
  • Care and Maintenance: The Evolution conserver is designed for a long and accurate life, however, as with any electronic device, prudent care is required. The unit should be kept clean and free from moisture and dust, as well as extreme temperature. Do not expose the unit to water, such as when bathing or swimming. It is advisable to keep the device in a carrying bag to afford a degree of protection.

Specification

Cylinder Type Cylinder Volume

Setting

 CF2 lpm
1 2 3 4 5 6 7

Estimated Cylinder Duration in Hours

(Based on 20 breathes per minute)
M2 36 Liters 3.0 1.5 1.0 0.8 0.6 0.5 0.4 0.3
M4 (A) 113 Liters 9.4 4.7 3.1 2.4 1.9 1.6 0.7 0.9
M6 (B) 164 Liters 13.7 6.8 4.6 3.4 2.7 2.3 1.9 1.4
ML6 171 Liters 14.3 7.1 4.8 3.6 2.9 2.4 2.0 1.4
M7 198 Liters 16.5 8.3 5.5 4.1 3.3 2.8 2.3 1.7
M9 (C) 246 Liters 20.5 10.3 6.8 5.1 4.1 3.4 2.9 2.1
D 425 Liters 35.4 17.7 11.8 8.9 7.1 5.9 5.0 3.5
E 680 Liters 56.7 28.3 18.9 14.2 11.3 9.4 8.1 5.7



Specification Dimension
Input pressure 200 to 3000 PSI (13.8 bar to 206.8 bar)
Operation Temperature range 14°F to 104°F (-10°C to 40°C)
Storage Temperature range -40°F to 158°F (-40°C to 70°C)
Operation Humidity range 15% - 95% non-condensing
Storage Humidity range Up to 95% non-condensing
Operating Altitude -1,000 to 10,000 feet
-304.8 to 3,048 meters
700hPa - 1060hPa
Cannula Standard nasal cannula, up to 7 ft.(2.13 m)
Regulator Built-in, 25 ± 5 PSI (1.7 ± .3 bar)
Continuous flow emergency Factory preset at 2.0 ± 0.5 lpm bypass setting Factory preset at 2.0 ± 0.5 lpm
Oxygen delivery at level:
1
2
3
4
5
6
7
Continuous flow		 Liter Flow Equivalency
1
2
3
4
5
6
7
2 LPM±0.5 LPM
Maximum breathing rate 40 breaths per minute
Power supply - Batteries (2) x 1.5 V alkaline AA or LR6-type rechargeable batteries
Low battery indicator light: Blinking red light Low battery energy level, replace batteries
Classification according to EN 60601-1
-Degree of protection against electric shock
-Degree of protection against harmful ingress of water		 Type BF
IPX1 as per IEC 60529
Electromagnetic compatibility (EMC) according to EN 60601-1-2 - Radio interference suppression - Radio interference immunity EN 55011
EN 61000-4-2 to 6, 8+11
Vibrations Within IEC 60068-2-64
Dimensions (L x H x W) 6.1" L (15.5 cm) x 2.5" H (6.4 cm) x 3.1" W (7.9 cm)
Weight Approximately 14.9 ounces (422 grams) with batteries

Warranty

2 year limited warranty
