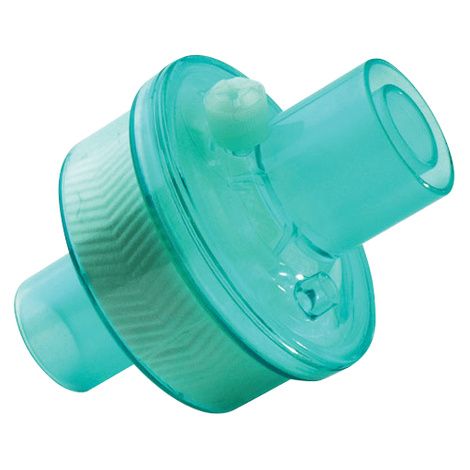

Covidien DAR Adult or Pediatric Electrostatic Filter Heat and Moisture Exchanger
Buy Covidien DAR Adult or Pediatric Electrostatic Filter Heat and Moisture Exchanger

Covidien DAR Adult or Pediatric Electrostatic Filter Heat and Moisture Exchanger

Brand/Manufacturer: COVIDIEN/MEDTRONIC
Hpfy Stores Save
Authorized Retailer Badge
  • FSA Approved

Covidien DAR Adult or Pediatric Electrostatic Filter Heat and Moisture Exchanger reduces set-up time, minimizes dead space and weight on endotracheal tube and circuit while maximizing efficiency. Electrostatic hydrophobic membrane protects against cross-contamination and hygroscopic membrane traps patients moisture providing effective airway humidification. It features low resistance to airflow to minimize work of breathing.







Read More
Item # Desc Pkg Price
352U5877 22M/15F-22F/15M Connection 50/Case
$304.35
$241.33

Features

  • Covidien DAR Adult or Pediatric Electrostatic Filter Heat and Moisture Exchanger has effective moisture control which reduces the risk of colonization in breathing tubes and minimizes sampling line blockage
  • End tidal CO2 sampling port offers convenient access to airway gases
  • ISO standard 15mm and 22mm fitting connects with breathing system
  • Treated with physiologically safe calcium chloride
  • Supplied clean and individually packaged
  • Indications for usage:
    - Adult (recommended tidal volume >150ml), single patient use on anesthetized patients and respiratory care patients who require a breathing circuit
    - Intended to be replaced at least once every 24 hours

Specification

Particulars Dimensions
Resistance to Flow (ISO 9360) 30 l/min : 1.0cm H2O
60 l/min : 2.8cm H2O
90 l/min : 4.7cm H2O
Bacterial Filtration Efficiency >99.99%
Viral Filtration Efficiency >99.99%
Dead space 49ml
Weight 28gm
Type of Filtration Electrostatic
Recommended Tidal Volume >150ml
Moisture output and temperature at 2 hours (ISO 9360) Vt 250ml : 34.4mg H2O/l @32.5oC
Vt 500ml : 33.6mg H2O/l @ 32.3oC
Vt 750ml : 30.1mg H2O/l @ 30.6oC
Vt 1000ml : 32.9mg H2O/l @ 32.2oC
