Drive CHAD Bonsai Velocity Pneumatic Oxygen Conserver
Buy Drive CHAD Bonsai Velocity Pneumatic Oxygen Conserver

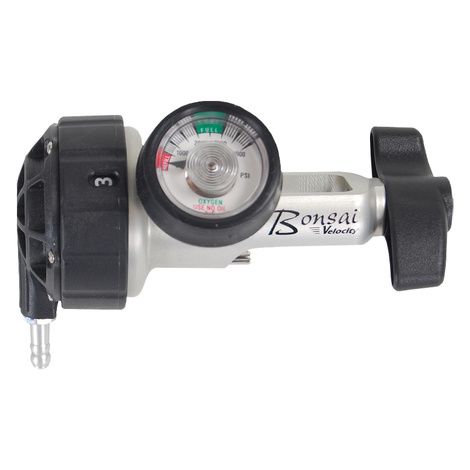

Drive CHAD Bonsai Velocity Pneumatic Oxygen Conserver

Brand/Manufacturer: DRIVE MEDICAL
Hpfy Stores Save
Authorized Retailer Badge
  • FSA Approved

Same Day Shipping



Drive Chad Bonsai Velocity Pneumatic Oxygen Conserver is designed for use with a cylinder as an ambulatory oxygen system and is capable of delivering a precise amount of supplemental oxygen at the optimal point in the breathing cycle. It increases the efficiency in the delivery of oxygen, maximizing the beneficial effects and eliminating unnecessary oxygen waste.



Read More
Item # Desc Pkg Price
OM-812 5.3"L x 2.2"D (13.5cm x 5.6cm) Each
$389.95
$309.27

Features

  • Drive Bonsai Velocity Pneumatic Oxygen Conserver includes a combination of a low- pressure regulator and an oxygen conserver
  • Delivers up to a 6:1 savings ratio from 14 to 40 breaths per minute
  • Deliver a uniform oxygen pulse at increments: 1, 2, 3, 4, 5, and 6
  • 2 Continuous flow (CF) settings preset at 2 LPM and 4 LPM
  • Operating pressure range: 200PSI to 3000PSI
  • Senses a breath or delivers oxygen in the first half of the inspiratory cycle
  • Lightweight, quiet operation and compact design
  • Easy to operate single selector knob
  • Compact design fits easily in virtually any carry bag
  • 6 Liter Flow Equivalency Settings:
    - Allows to fill more prescriptions & handle patients who require higher liter flows
  • CF Settings (lpm):
    - 2 and 4
  • Oxygen Delivery System:
    - CHADs uniform pulse delivers more oxygen as patients breathe faster
  • Every unit comes with a color teaching card included
  • Click Here For Instructions Guide
  • Note:
    - This product requires a prescription from a licensed medical professional.
    - Prescription can be faxed to 1.203.616.2851 or emailed to prescription@hpfy.com.

More Information

  • Caution:
    - Federal (USA) law restricts this device to sale by or on the order of a physician
    - Prevent water or other liquid substances from entering the unit
    - Prevent dust or any small particles from entering the unit
    - Do not expose the unit to extreme temperatures
    - Always maintain a backup supply of oxygen
    - Do not use humidifier bottles
    - Do not use if leaking or damaged
    - Refer repairs to authorized service personnel

Specification

Cylinder Type Cylinder Volume

Settings

 CF 2 lpm CF 4 lpm
1 2 3 4 5 6

Estimated Cylinder Duration in Hours

(Based on 20 breathes per minute)
M2 36 Liters    2.3 1.4 0.9 0.8 0.7 0.6 0.3 0.2
M4 (A) 113 Liters    7.2 4.3 2.9 2.4 2.0 1.8 0.9 0.5
M6 (B) 164 Liters 10.5 6.2 4.3 3.5 3.0 2.6 1.4 0.7
ML6 171 Liters 11.0 6.5 4.5 3.7 3.1 2.7 1.4 0.7
M7 198 Liters 12.7 7.5 5.2 4.2 3.6 3.2 1.7 0.8
M9 (C) 246 Liters 15.8 9.3 6.4 5.3 4.5 3.9 2.1 1.0
D 425 Liters 27.2 16.1 11.1 9.1 7.7 6.8 3.5 1.8
E 680 Liters 43.6 25.8 17.7 14.5 12.3 10.9 5.7 2.8



Specifications
Dimensions 5.3"L x 2.2"D (13.5cm x 5.6cm)
Weight Approximately 10 ounces (283 grams)
Operating Temperature 14°F to 104°F (-10°C to 40°C)
Operating Relative Humidity 20% to 95%
Operating Altitude 0 to 10,000 feet (0 to 3048 meters)
Storage/Transportation Maximum -40°F (-40°C), 1% RH
Maximum 145°F (63°C), 44% RH
Shock Not to exceed IEC 68-2-27 requirements
Vibration Not to exceed IEC 68-2-6, IEC 68-2-34

Warranty

2 year limited warranty
